Diamond Dry Cutter

• Place of Origin:

   China

• Type:

  Sawing and Cutting Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1278462

• Place of Origin:

  China

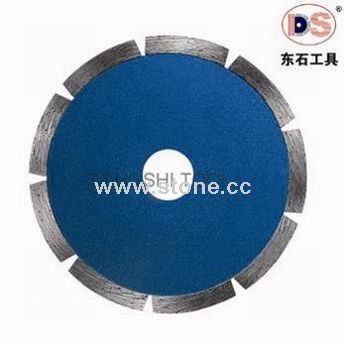

• As "Diamond Dry Cutters "are being used a lot in the area of stone, etc.
  We produce them for general purpose and granite.We have designed our blades so that they do not chip the stone.

  Item No.  Diameter( Inch)           (mm)    Hole Diameter    (mm)Segment Dimensions ThicknessxHeight(mm)
  JK/105  4"     105    20/22.2             1.8 x 7.5
  JK/108  4"     108    20/22.2             1.8 x 8.5
  JK/110  4"     110    20/22.2             1.8 x 12
  JK/114  4.5"     114    20/22.2             1.9 x 1.5
  JK/115  4.5"     115    20/22.2             2 x 7.5
  JK/125  5"     125    22.2/25.4             1.9 x 7.5
  JK/150  6"     150    22.2/25.4               1.9 x 7.5
  JK/180  7"     180    22.2/25.4              2.6 x 8
  JK/200  8"     200    22.2/25.4               2.6 x 8
  JK/230  9"     230    22.2/25.4              2.6 x 8
  JK/250  10"     250    22.2/25.4              2.6 x 8
  JK/300  12"     300    50/25.4              2.8 x 8
  JK/350  14"     350    50/25.4              2.8 x 8
