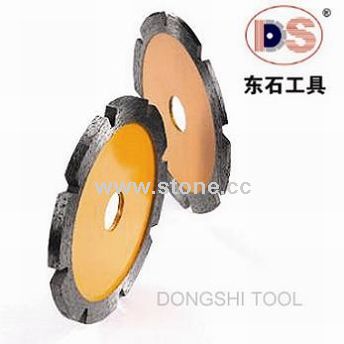

Notched Diamond Saw Blade

• Place of Origin:

   China

• Type:

  Sawing and Cutting Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1277917

• Place of Origin:

  China
• Pressure Diamond Saw Blades(HOT AND COOL): They take shape and Features:
  have knife head of binding strength with high sharpness. Especially, the such saw blade can only be manufactured through compression, but product specification should usually be below diameter400. Proper pressure is applied tu hot compression saw blades under the high temperature above 800 degree, so that the have more even and higher density and better binding strength between the cast and the diamond and bast. Cold compression saw blades have similar process. However the pressure is not applied in the process of heat-treament, so that their physical properties such as density and strenth are inferior to hot compression saw blades, although with low production cost and sharpness.

  Dimensions:
  Notched Diamond Saw Blade   Dimension
  Item No.  Diameter( Inch)           (mm)    Hole Diameter (mm)  Segment Dimensions Thickness*Height(mm)
  KC/105  4"  105  20  3/4/5/6 x 7
  KC/108  4"  108  20  3/4/5/6 x 7
  KC/110  4.5"  110  20  3/4/5/6 x 7
  KC/115  4.5"  115  22.2  3/4/5/6 x 7
  KC/125  5"  125  22.2  3/4/5/6 x 7
  KC/150  6"  150  22.2/25.4  3/4/5/6 x 7
  KC/180  7"  180  22.2/25.4  3/4/5/6 x 7
  KC/200  8"  200  22.2/25.4  3/4/5/6 x 7
  KC/230  9"  230  22.2/25.4  3/4/5/6 x 7
  KC/250  10"  250  22.2/25.4  3/4/5/6 x 7
